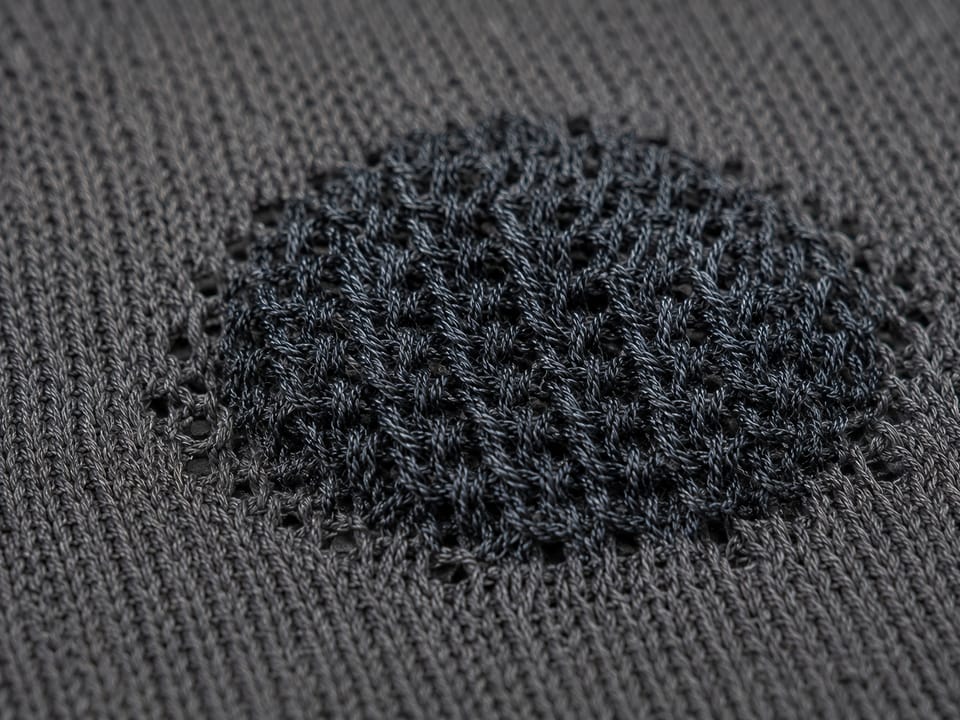

Textile electrodes
Skin-contact sensing for ECG, EMG, and EEG, with no metal snap pressed against the body.
PEDOT:PSS — conductivity without metal
- Sheet resistance
- 50–500 Ω/sq
- Cure
- <130 °C / <5 min
- Solid content
- 1–3%
Why a polymer instead of metal
Nearly every conductor in an electronic product is metal. Metal carries current superbly and is unforgiving everywhere else — stiff at a fold, vulnerable to sweat.
PEDOT:PSS conducts as a polymer instead. It goes on wet, dries into a thin conductive layer, and flexes with whatever surface it was applied to.
Engineered to your process
Prints, coats, or dips
Solution-processable: the same polymer becomes a printed film, a surface coating, an ink, or a fiber treatment.
Tuned to your substrate
Molecular weight, D:S ratio, additives, and processing set conductivity, stretchability, adhesion, and stability inside your process window.
Measured on your formulation
Sheet resistance, transparency, adhesion, and thermal behavior are measured on your formulation, in the lab that backs our contract work.
Published evidence
Coated fibers and textile-electrode constructions have been evaluated in peer-reviewed studies. Results apply to those constructions, not to every formulation.
Electrical performance depends on formulation, substrate, geometry, and processing — it is confirmed for the selected formulation during technical scoping.
Where the conductor is needed
Wearable sensing
Sensing surfaces carried inside garments that are worn, washed, and trained in.

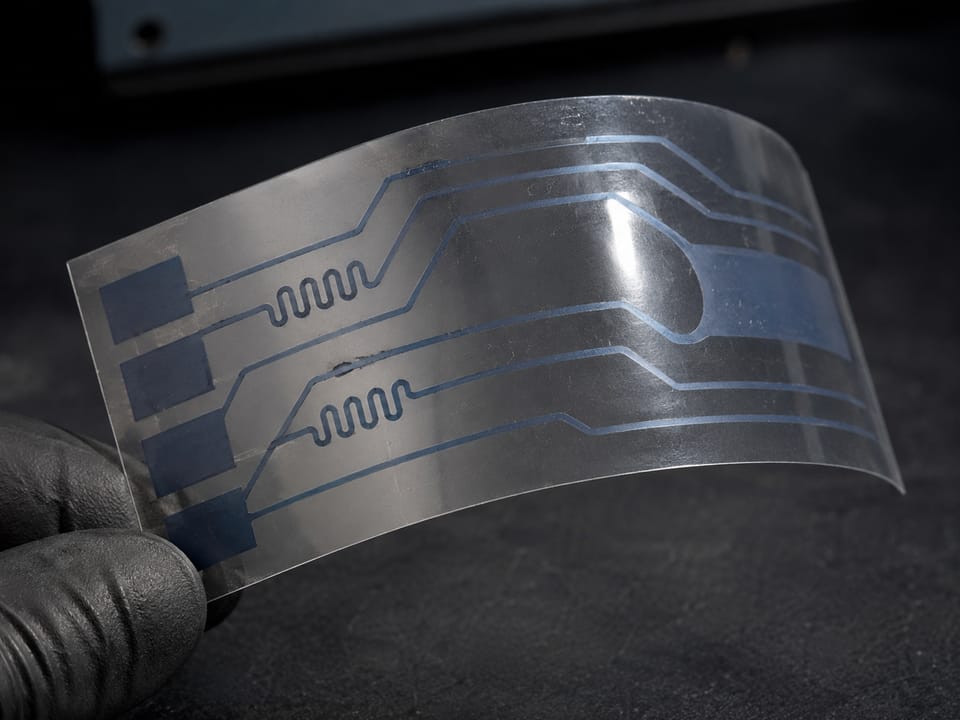

ImageImage to shootA printed conductive trace on a clear flexible film, held in a gentle curve against a near-black ground.Printed and flexible electronics
Printed and flexible electronics
Conductive traces on films and curved parts where a rigid board will not sit.
Development programs
Beyond supply formulations, the PEDOT:PSS platform anchors identified development programs. Each is stated at its actual maturity — a program in development, not an available product.
- In development
PFAS-capture membranes (PEDOT:PSS–graphene)
PEDOT:PSS–graphene coatings for water-filtration membranes, in development with graphene producer Universal Matter under a Next Generation Manufacturing Canada (NGEN) project.
How it works
PFAS adsorbs onto the PEDOT:PSS–graphene surface with the voltage off and desorbs back into solution when voltage is applied — electrochemical removal and recovery.
The coating is engineered as a thin pore-wall layer to avoid the risk of flux loss, toward a conductive, regenerable, anti-fouling membrane for industrial and municipal water treatment.
- In development
Graphene dispersion manufacturing
The same NGEN program applies advanced AI tools to the optimization of graphene-dispersion manufacturing, supporting commercialization in concrete and rubber products.
How it works
Deploying them into the operational design of the dispersion processes is expected to significantly increase process uptime and throughput yield.
Program claims restate Myant's advanced-manufacturing program materials (July 2026). Membrane performance, formats, and availability are defined by the program — not offered as supply.
Supply and formulation
Bulk quantities and formulation details are confirmed during technical scoping — fast response from our technical team.
Available for partner development · Research-supported
100 mLIdeal for prototyping and early development.
1 LDesigned for scaling and pilot runs.
Bulk / customLarger volumes and custom formulations, engineered to your substrate, conductivity, and process targets.
How it is described technically
PEDOT:PSS is a carbon-based, metal-free conductive polymer. MyantX formulates and applies it as films, coatings, inks, and fiber treatments for flexible, printed, and smart-textile conductors — including electrode and interconnect constructions across Myant's Textile Computing™ programs.
Its properties are engineered per formulation and process. The values below are characterized ranges for representative formulations; exact properties, test methods, and processing windows are confirmed for the selected formulation during technical scoping.
Characterized property ranges
PEDOT:PSS — full specifications Sheet resistance 50–500 Ω/sqCharacterized Conductivity High Conductivity Cure <130 °C in less than 5 minCharacterized Solid content 1–3 %Characterized Transparency As high as 90% (diameter of 100nm)Typical L* ≈ 30–100Characterized Mechanical Overprint-safe Compatibility Water-based inks Electrochemical behavior Stable, reversible performance Film quality Smooth films (48–71 mesh)MyantX white paper — Advanced Materials in HealthCare Values are representative of identified internal formulations and test configurations — not guaranteed specifications. Detailed methods and formulation-specific specifications are confirmed during scoping. “Clinical-grade” describes a validated end-system, not the polymer alone.
Peer-reviewed studies
Results below are from identified studies on specific formulations or constructions — they apply to those, not to the material family.
- Multidimensional evaluation of highly durable scalable and seamlessly integrated fiber-based electrodes for wearable applications
PEDOT:PSS-coated fibers produced by a scalable roll-to-roll process were knitted into 3D textile electrodes and machine-washed 60 times with no deterioration in ECG performance.
- Multidimensional evaluation of highly durable scalable and seamlessly integrated fiber-based electrodes for wearable applications
Build with PEDOT:PSS
When you need a solution-processable, organic conductor for films, coatings, inks, or treated fibers.
